Western Star
49X (SET-FORWARD WITH TOW HOOK RECEIVERS '21-LATER)
XG GEN 3 (EXTREME DUTY PLUS)
XG-W295G3
XG-W225G3
GUARD COLOR:
TRUCK COLOR:
Mounting Bracket
XG-24WS49XRS
Get Pricing
Select a Guard Above to See More Details
SKU:
Categories:
PRODUCT DETAILS
FINISH:
MATERIAL:
LATCH TYPE:
TRUCK COMPATIBILITY:
GUARD CONSTRUCTION:
INSTALL TIME:
WEIGHT:
DIMENSIONS:
LIFT WEIGHT TO CLOSE:
LICENSE PLATE BRACKET:
NUMBER OF CROSSBARS:
LICENSE PLATE KIT:
Display your license plate safely and secure while ensuring your tags stay visible at all times. The license plate kit comes included with all *Generation 3 XG Series guards.
MORE INFORMATION
Dual cam latch
Compare
XG-150G3
EX-150G3
XG-125G3
EX-125G3
LT-325G3
Construction and Materials:
Tube Composition
High-Tensile Steel
High-Tensile Steel
High-Tensile Steel
High-Tensile Steel
High-Tensile Steel
Steel Tubing Gauge
8 Gauge - 11/64"
8 Gauge - 11/64"
8 Gauge - 11/64"
8 Gauge - 11/64"
11 Gauge - 1/8"
Height
47"
44"
37"
30"
X
Width
94"
94"
94"
94"
94"
Depth
21"
21"
14"
14"
14"
Cross Bars
5
4
4
3
3
Additional Coverage Height vs. EX
+3" Taller
-
+7" Taller
-
-
Coating
EVRCoat™ PVC
EVRCoat™ PVC
EVRCoat™ PVC
EVRCoat™ PVC
EVRCoat™ PVC
Lift Assist Technology
Xero-G™ Lift Assist
-
-
-
Service Lift Weight
< 5 lbs.
80 lbs.
3 lbs.
40 lbs.
40 lbs.
Shipping Weight
230 lbs.
210 lbs.
166 lbs.
145 lbs.
110 lbs.
Latch Technology
LevrLock™ Dual-Cam Latch
-
Single-Handle Latch
-
-
-
-
Latches
2 (L&R Separate)
2 (L&R Separate)
2 (L&R Separate)
2 (L&R Separate)
2 (L&R Are Unified)
License Plate Frame Included
Available Separately
Available Separately
Available Separately
CMS Compatibility
ClearZone CMS Compatible
Varies - Contact Ex-Guard
Coverage Areas:
Hood
-
-
-
Headlights
-
-
-
Grille - Top
-
-
-
Grille - Base
Bumper
Collision Mitigation System
COMPARE
XG-150G3-NGT680
XG-125G3-NGT680
Construction and Materials:
Tube Composition
High-Tensile Steel
High-Tensile Steel
Steel Tubing Gauge
8 Gauge - 11/64"
8 Gauge - 11/64"
Height
47"
37"
Width
94"
94"
Depth
21"
14"
Cross Bars
5
4
Coating
EVRCoat™ PVC
EVRCoat™ PVC
Lift Assist Technology
Xero-G™ Lift Assist
Service Lift Weight
< 5 lbs.
3 lbs.
Shipping Weight
230 lbs.
166 lbs.
Latch Technology
LevrLock™ Dual-Cam Latch
Single-Handle Latch
-
-
Latches
2 (L&R Separate)
2 (L&R Separate)
License Plate Frame Included
CMS Compatibility
ClearZone CMS Compatible
Coverage Areas:
Hood
-
Headlights
-
Grille - Top
-
Grille - Base
Bumper
Collision Mitigation System
COMPARE
XG-295G3
XG-225G3
Construction and Materials:
Tube Composition
High-Tensile Steel
High-Tensile Steel
Steel Tubing Gauge
8 Gauge - 11/64"
8 Gauge - 11/64"
Height
50"
37"
Width
94"
94"
Depth
9"
7"
Cross Bars
5
4
Coating
EVRCoat™ PVC
EVRCoat™ PVC
Lift Assist Technology
Xero-G™ Lift Assist
Service Lift Weight
< 5 lbs.
3 lbs.
Shipping Weight
253 lbs.
163 lbs.
Latch Technology
LevrLock™ Dual-Cam Latch
Single-Handle Latch
-
-
Latches
2 (L&R Separate)
2 (L&R Separate)
License Plate Frame Included
CMS Compatibility
ClearZone CMS Compatible
Coverage Areas:
Hood
-
Headlights
-
Grille - Top
-
Grille - Base
Bumper
Collision Mitigation System
COMPARE

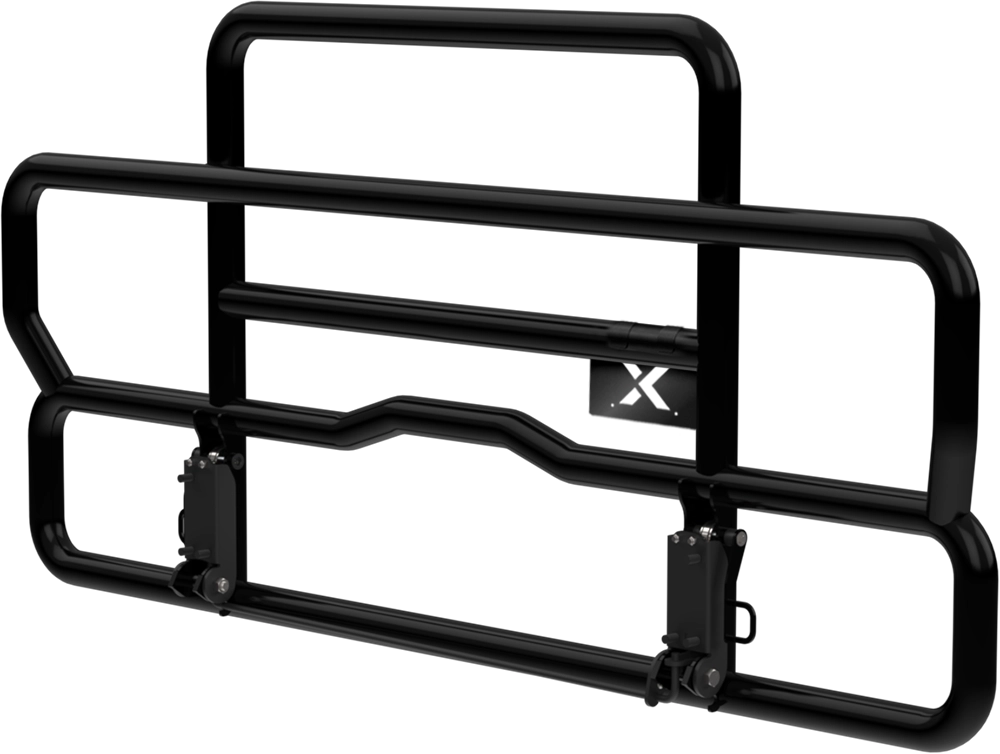

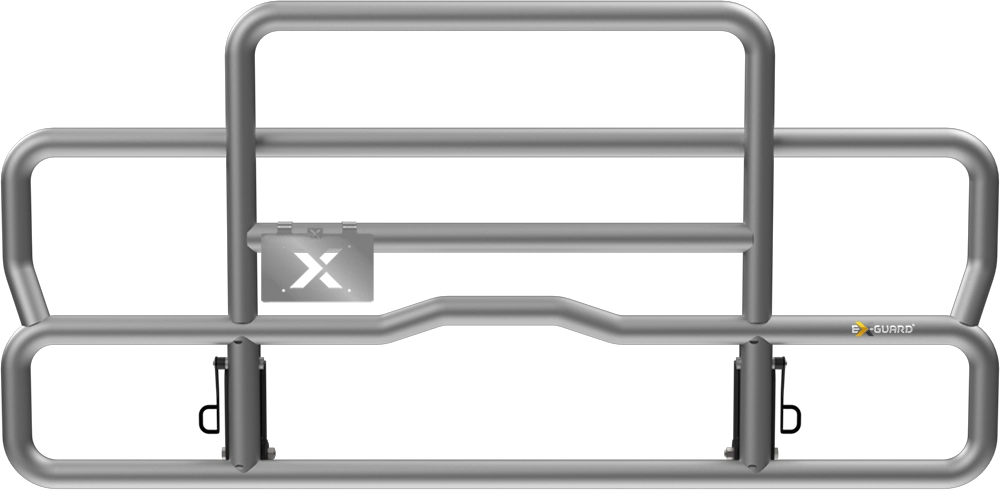

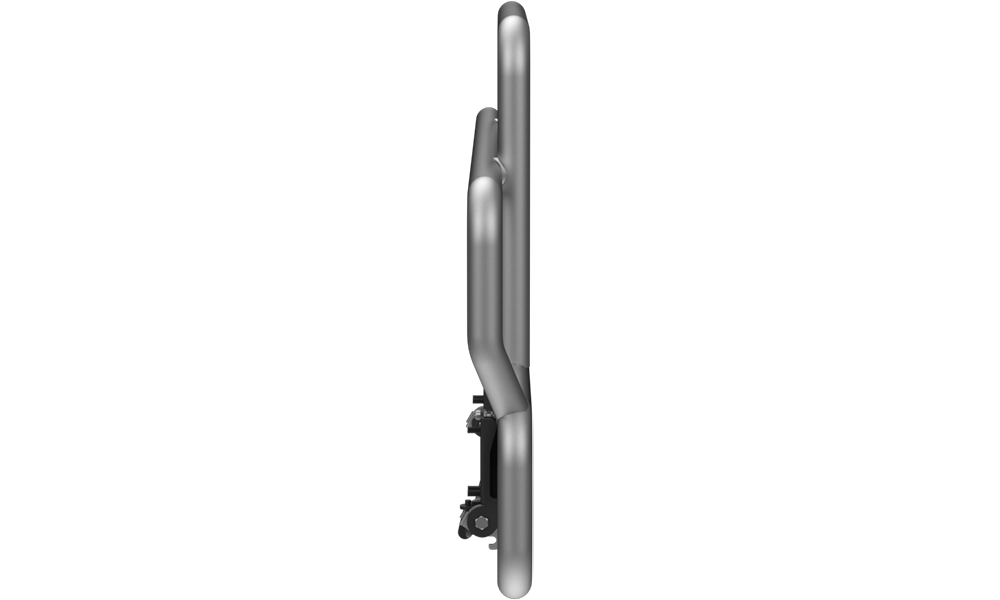

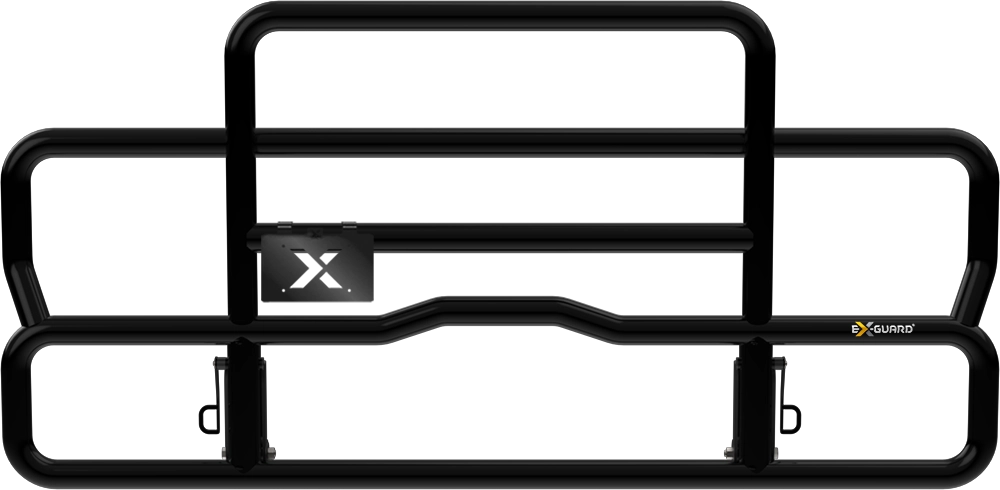

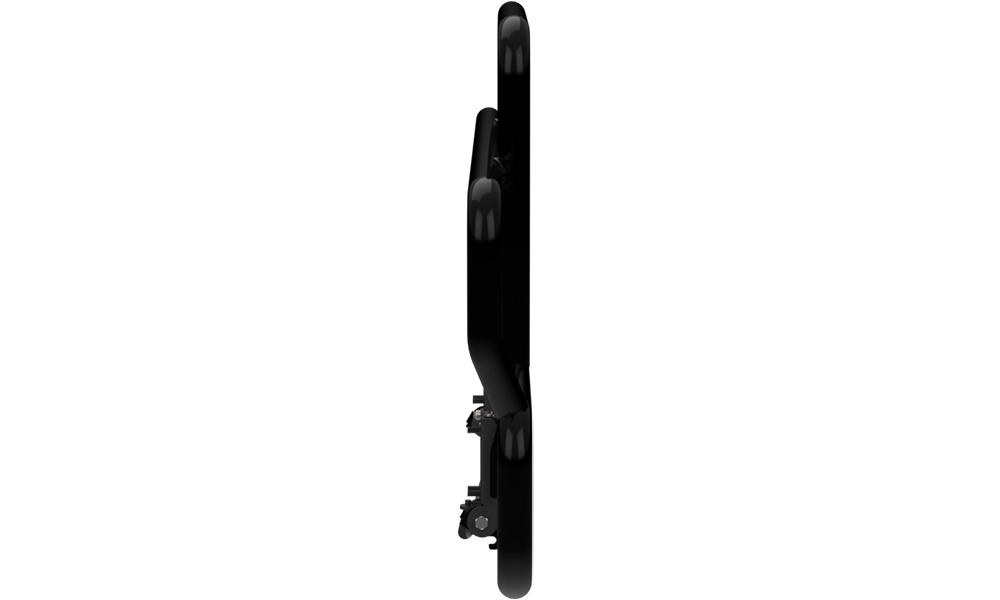

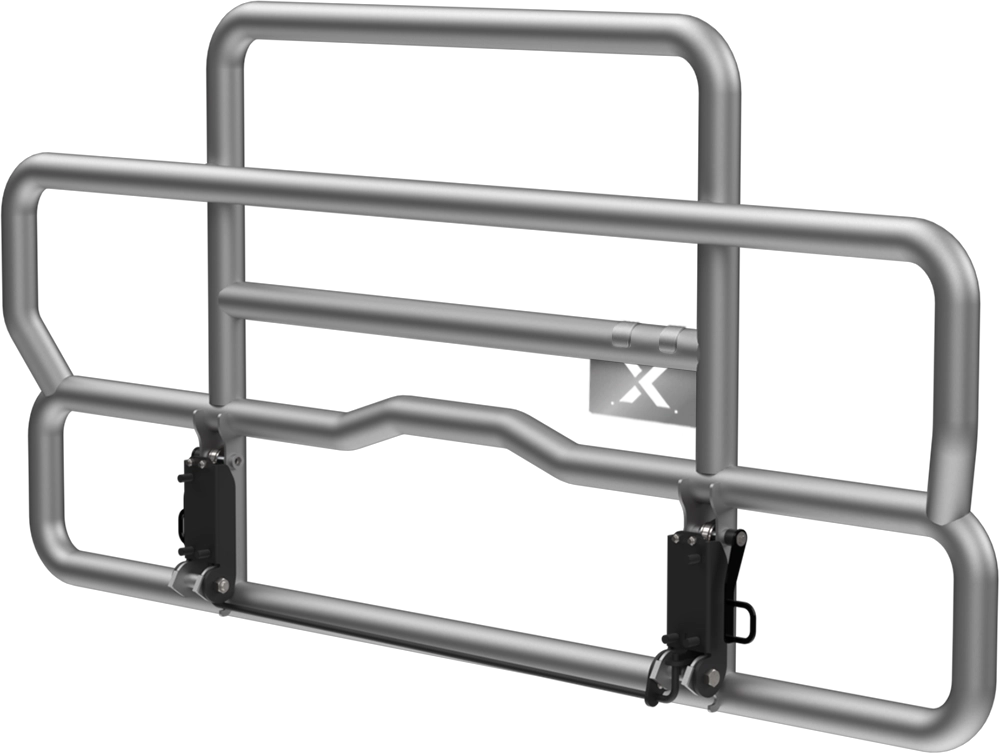

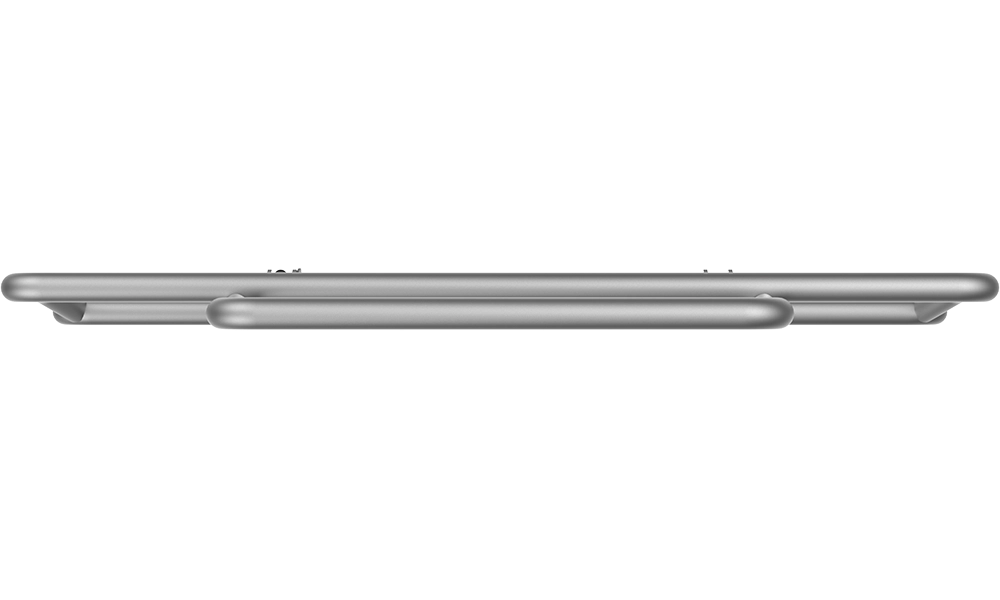

XG-W295G3

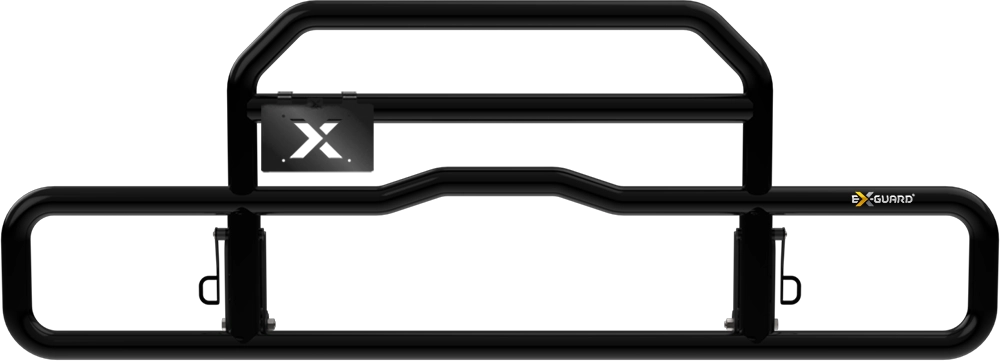

XG-W225G3
Construction and Materials:
Tube Composition
High-Tensile Steel
High-Tensile Steel
Steel Tubing Gauge
8 Gauge - 11/64"
8 Gauge - 11/64"
Height
50"
37"
Width
102"
102"
Depth
9"
7"
Cross Bars
5
4
Coating
EVRCoat™ PVC
EVRCoat™ PVC
Lift Assist Technology
Xero-G™ Lift Assist
Service Lift Weight
< 5 lbs.
3 lbs.
Shipping Weight
239 lbs.
158 lbs.
Latch Technology
LevrLock™ Dual-Cam Latch
Single-Handle Latch
-
-
Latches
2 (L&R Separate)
2 (L&R Separate)
License Plate Frame Included
CMS Compatibility
ClearZone CMS Compatible
Coverage Areas:
Hood
-
Headlights
-
Grille - Top
-
Grille - Base
Bumper
Collision Mitigation System
