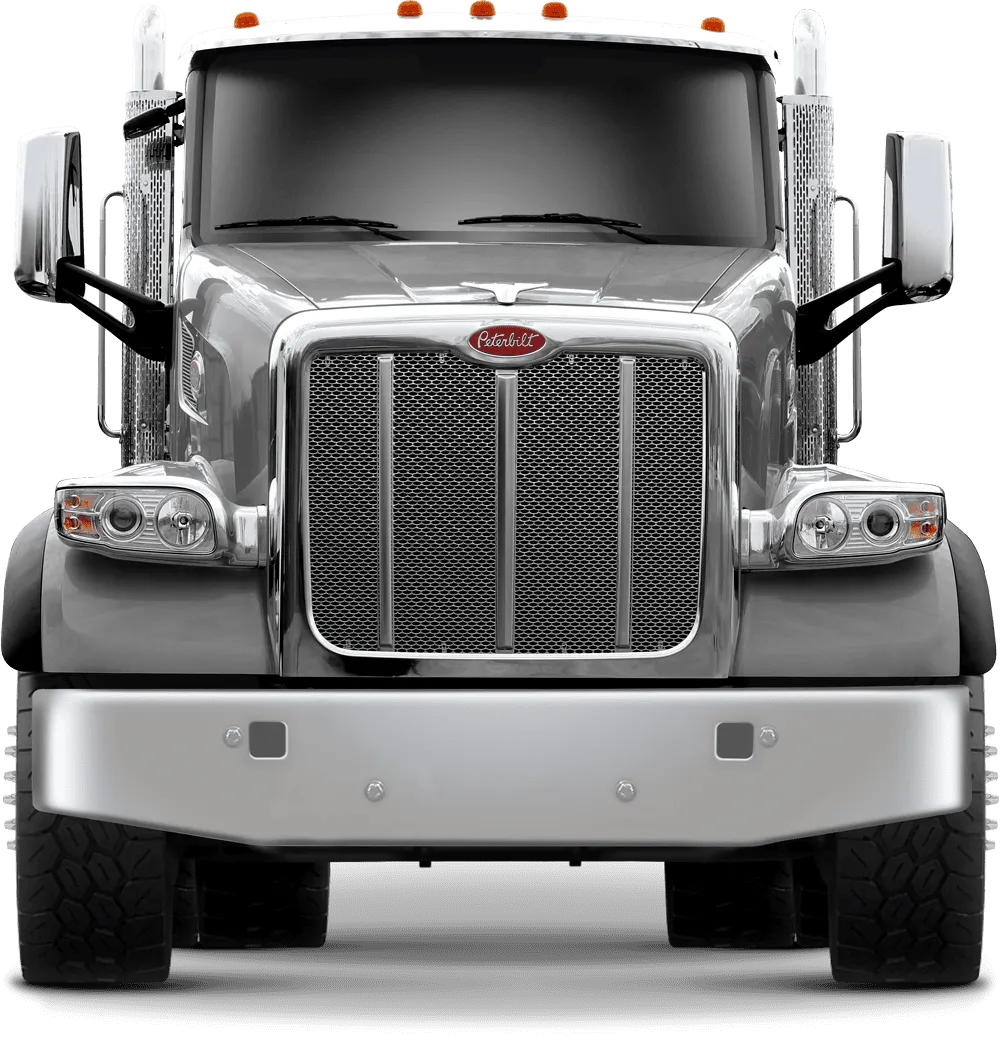

Peterbilt 567 (SET-FORWARD)

XG GEN 3 (EXTREME DUTY PLUS)

XG-295G3

XG-225G3

LEGACY (DISCONTINUED)

HD-595G1

HD-525G1

GUARD COLOR:

TRUCK COLOR:

Mounting Bracket

XG-23P567

Get Pricing

Select a Guard Above to See More Details

PRODUCT DETAILS

FINISH:

MATERIAL:

LATCH TYPE:

TRUCK COMPATIBILITY:

GUARD CONSTRUCTION:

INSTALL TIME:

WEIGHT:

DIMENSIONS:

LIFT WEIGHT TO CLOSE:

LICENSE PLATE BRACKET:

NUMBER OF CROSSBARS:

LICENSE PLATE KIT:

Display your license plate safely and secure while ensuring your tags stay visible at all times. The license plate kit comes included with all *Generation 3 XG Series guards.

MORE INFORMATION

Dual cam latch

Compare	XG-150G3	EX-150G3	XG-125G3	EX-125G3	LT-325G3

Construction and Materials:
Tube Composition	High-Tensile Steel	High-Tensile Steel	High-Tensile Steel	High-Tensile Steel	High-Tensile Steel
Steel Tubing Gauge	8 Gauge - 11/64"	8 Gauge - 11/64"	8 Gauge - 11/64"	8 Gauge - 11/64"	11 Gauge - 1/8"
Height	47"	44"	37"	30"	X
Width	94"	94"	94"	94"	94"
Depth	21"	21"	14"	14"	14"
Cross Bars	5	4	4	3	3
Additional Coverage Height vs. EX	+3" Taller	-	+7" Taller	-	-
Coating	EVRCoat™ PVC	EVRCoat™ PVC	EVRCoat™ PVC	EVRCoat™ PVC	EVRCoat™ PVC

Lift Assist Technology
Xero-G™ Lift Assist		-		-	-
Service Lift Weight	< 5 lbs.	80 lbs.	3 lbs.	40 lbs.	40 lbs.
Shipping Weight	230 lbs.	210 lbs.	166 lbs.	145 lbs.	110 lbs.

Latch Technology
LevrLock™ Dual-Cam Latch					-
Single-Handle Latch	-	-	-	-
Latches	2 (L&R Separate)	2 (L&R Separate)	2 (L&R Separate)	2 (L&R Separate)	2 (L&R Are Unified)

License Plate Frame Included		Available Separately		Available Separately	Available Separately

CMS Compatibility
ClearZone CMS Compatible					Varies - Contact Ex-Guard

Coverage Areas:
Hood			-	-	-
Headlights			-	-	-
Grille - Top			-	-	-
Grille - Base
Bumper
Collision Mitigation System

COMPARE	XG-150G3-NGT680	XG-125G3-NGT680

Construction and Materials:
Tube Composition	High-Tensile Steel	High-Tensile Steel
Steel Tubing Gauge	8 Gauge - 11/64"	8 Gauge - 11/64"
Height	47"	37"
Width	94"	94"
Depth	21"	14"
Cross Bars	5	4
Coating	EVRCoat™ PVC	EVRCoat™ PVC

Lift Assist Technology
Xero-G™ Lift Assist
Service Lift Weight	< 5 lbs.	3 lbs.
Shipping Weight	230 lbs.	166 lbs.

Latch Technology
LevrLock™ Dual-Cam Latch
Single-Handle Latch	-	-
Latches	2 (L&R Separate)	2 (L&R Separate)

License Plate Frame Included

CMS Compatibility
ClearZone CMS Compatible

Coverage Areas:
Hood		-
Headlights		-
Grille - Top		-
Grille - Base
Bumper
Collision Mitigation System

COMPARE	XG-295G3	XG-225G3
Construction and Materials:
Tube Composition	High-Tensile Steel	High-Tensile Steel
Steel Tubing Gauge	8 Gauge - 11/64"	8 Gauge - 11/64"
Height	50"	37"
Width	94"	94"
Depth	9"	7"
Cross Bars	5	4
Coating	EVRCoat™ PVC	EVRCoat™ PVC

Lift Assist Technology
Xero-G™ Lift Assist
Service Lift Weight	< 5 lbs.	3 lbs.
Shipping Weight	253 lbs.	163 lbs.

Latch Technology
LevrLock™ Dual-Cam Latch
Single-Handle Latch	-	-
Latches	2 (L&R Separate)	2 (L&R Separate)

License Plate Frame Included

CMS Compatibility
ClearZone CMS Compatible

Coverage Areas:
Hood		-
Headlights		-
Grille - Top		-
Grille - Base
Bumper
Collision Mitigation System

COMPARE	XG-W295G3	XG-W225G3

Construction and Materials:
Tube Composition	High-Tensile Steel	High-Tensile Steel
Steel Tubing Gauge	8 Gauge - 11/64"	8 Gauge - 11/64"
Height	50"	37"
Width	102"	102"
Depth	9"	7"
Cross Bars	5	4
Coating	EVRCoat™ PVC	EVRCoat™ PVC

Lift Assist Technology
Xero-G™ Lift Assist
Service Lift Weight	< 5 lbs.	3 lbs.
Shipping Weight	239 lbs.	158 lbs.

Latch Technology
LevrLock™ Dual-Cam Latch
Single-Handle Latch	-	-
Latches	2 (L&R Separate)	2 (L&R Separate)

License Plate Frame Included

CMS Compatibility
ClearZone CMS Compatible

Coverage Areas:
Hood		-
Headlights		-
Grille - Top		-
Grille - Base
Bumper
Collision Mitigation System
