KENWORTH W900B FITMENT GUIDE

W900B Tow-Hook Measurements

Measure the center-to-center distance between the two front tow hooks to identify the correct Ex-Guard bracket kit.

Compare measurements Browse bracket kits

HOW TO IDENTIFY YOUR FITMENT

Measure Center to Center

The Kenworth W900B uses one of two bracket kits based on the horizontal spacing between the front tow hooks.

Use a straight center-to-center measurement and compare it with the illustrated 34-inch and 39.75-inch configurations.

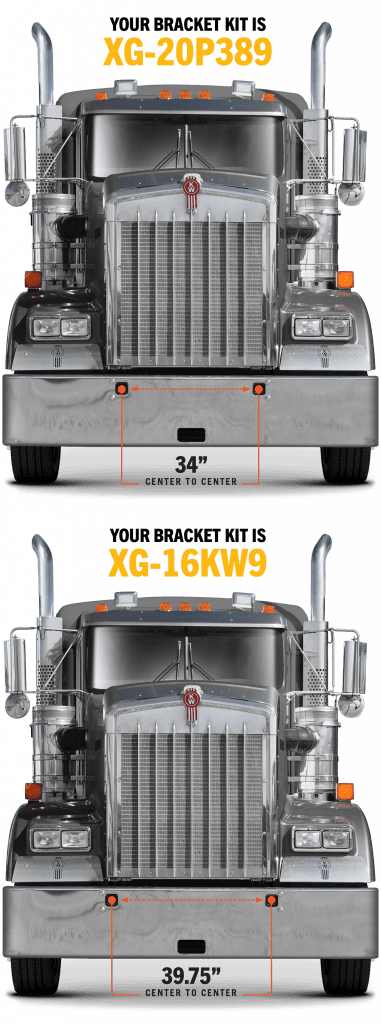

Kenworth W900B tow-hook comparison showing 34-inch spacing for XG-20P389 and 39.75-inch spacing for XG-16KW9

FITMENT OPTIONS

Choose the Matching Tow-Hook Spacing

Open the matching truck record or bracket-kit record to confirm the complete application.

34-Inch Spacing

If the center-to-center tow-hook measurement is 34 inches, use bracket kit XG-20P389.

39.75-Inch Spacing

If the center-to-center tow-hook measurement is 39.75 inches, use bracket kit XG-16KW9.

FITMENT SUPPORT

Need Help Confirming the Measurement?

Send your truck year, model and clear front-bumper photos to Ex-Guard before ordering if the spacing does not match either published option.
